Underground mining presents a completely different operating environment from surface excavation. Narrow tunnels, limited headroom, uneven floors, and confined working spaces place strict demands on underground equipment.
In non-ferrous metal mines such as gold, copper, lead-zinc, nickel, and tin, underground drift maintenance is a routine task throughout the mine's life cycle. After blasting, operators often need to remove loose rock, reshape tunnel profiles, clean debris, repair drainage ditches, and prepare the roadway for the next production cycle.
Traditionally, these jobs required several different machines—or even manual labor. Today, compact underground drift rehabilitation machines are allowing contractors to complete multiple operations with a single piece of equipment while improving safety and efficiency.
The question is no longer simply which machine to buy, but which boom configuration best matches the dimensions of the underground drift.
Why Tunnel Dimensions Should Determine Equipment Selection
Every underground mine has different roadway dimensions.
Production drifts are often much narrower than main haulage tunnels, leaving very limited space for machine movement.
For example:
|
Tunnel Size
|
Recommended Machine Configuration
|
Typical Mining Application
|
|
2.5–3.0 m
|
Compact machine with center rotating boom
|
Gold mines, narrow production drifts
|
|
3.5–4.5 m
|
Center rotating boom + telescopic boom
|
Copper, lead-zinc, polymetallic mines
|
|
Above 5.0 m
|
Larger long-reach underground equipment
|
Main haulage tunnels and underground chambers
|
Instead of purchasing the largest machine available, many mining companies now select equipment according to the actual tunnel profile to maximize maneuverability and working efficiency.
Why Center Boom Rotation Matters Underground
One of the biggest challenges in underground mining is the inability to reposition equipment easily.
Unlike surface excavation, operators often have only a few centimeters of clearance on each side of the machine.

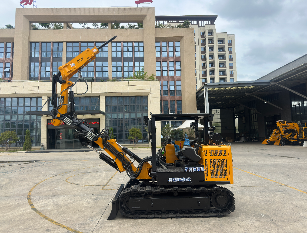

A center rotating boom solves this problem by allowing the working attachment to rotate independently without constantly moving the entire machine.
This provides several practical advantages:
-
Reach both tunnel walls from one position
-
Reduce unnecessary machine movement
-
Improve productivity in narrow drifts
-
Lower floor damage caused by repeated repositioning
For mines with restricted working space, boom flexibility is often more valuable than additional machine size.
Telescopic Boom: Compact During Transport, Extended During Operation
Transport dimensions are another important consideration underground.
A compact machine is easier to move through shafts, access tunnels, and narrow roadways.
However, maintenance work often requires greater working reach when repairing tunnel roofs or reshaping side walls.

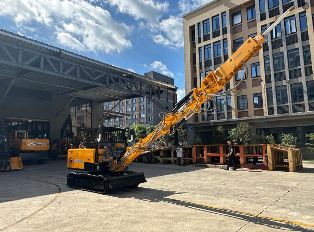

A telescopic boom offers the best balance between these two requirements.
When traveling, the machine remains compact enough to pass through narrow underground passages.
When working, the boom extends to provide greater vertical and horizontal coverage without increasing the overall size of the carrier.
This allows one machine to adapt to changingtunnel profiles throughout different mining areas.
One Machine for Multiple Underground Maintenance Tasks
Modern underground rehabilitation machines are no longer designed for a single purpose.
Instead, contractors increasingly prefer equipment capable of performing several maintenance operations during one shift.
Typical underground applications include:
-
Scaling loose rock after blasting
-
Tunnel profile trimming
-
Drainage ditch excavation
-
Muck and debris cleaning
-
Small material handling
-
Ground leveling
-
Rock breaking with hydraulic attachments
By reducing the number of machines required underground, operators can simplify logistics, reduce labor requirements, and improve overall mine productivity.
Compact Size Creates Big Advantages Underground
Machine dimensions directly affect where equipment can operate.
A compact underground rehabilitation machine with a transport width of approximately 1.4 meters and a small turning radius can travel through narrow mine drifts that larger machines simply cannot enter. Combined with a 360° upper structure, a ±35° boom swing, and a ±350° center boom rotation, the operator can complete a wide working area while minimizing repositioning.
For underground contractors, this often translates into less idle time and more productive working hours.
Choosing Equipment Based on the Mine, Not the Specification Sheet
When selecting underground mining equipment, it is easy to compare engine power or bucket capacity.
However, underground productivity depends far more on whether the machine matches the dimensions and working conditions of the mine.
A compact machine equipped with arotating center boom and telescopic working arm can often complete maintenance tasks faster than a much larger machine simply because it moves more efficiently within confined spaces.
For many underground gold, copper, lead-zinc, and other non-ferrous metal mines, choosing equipment that fits the tunnel—not just the job—has become an important part of improving both productivity and safety.
Conclusion
As underground mining continues to prioritize mechanization, safety, and labor efficiency, multifunctional drift rehabilitation machines are becoming an increasingly valuable solution.
Rather than focusing only on digging performance, modern mine operators are looking for equipment that combines compact dimensions, flexible boom movement, and the ability to complete multiple underground maintenance tasks with a single machine.
Ultimately, the best underground rehabilitation machine is not the largest one—it is the one designed to work efficiently within the dimensions of the tunnel where it operates.
